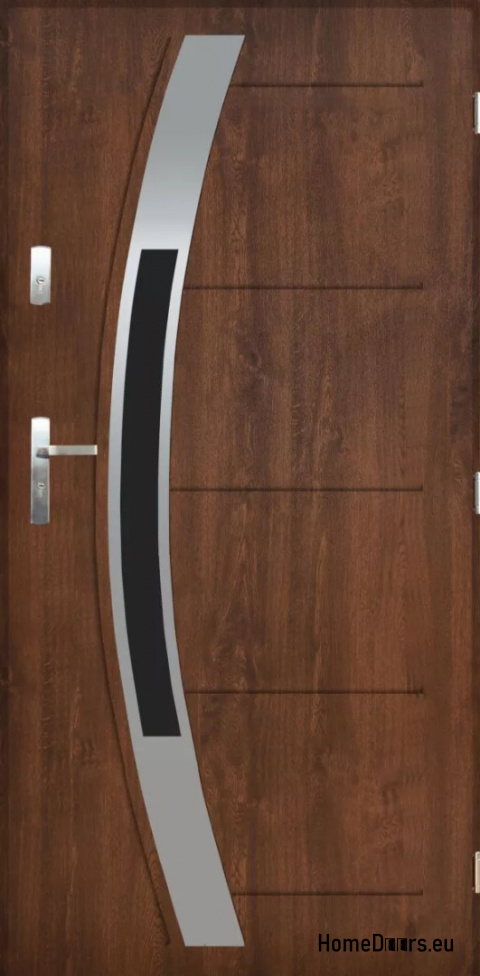

Exterior doors Polish steel 55mm FAGOT 01 90

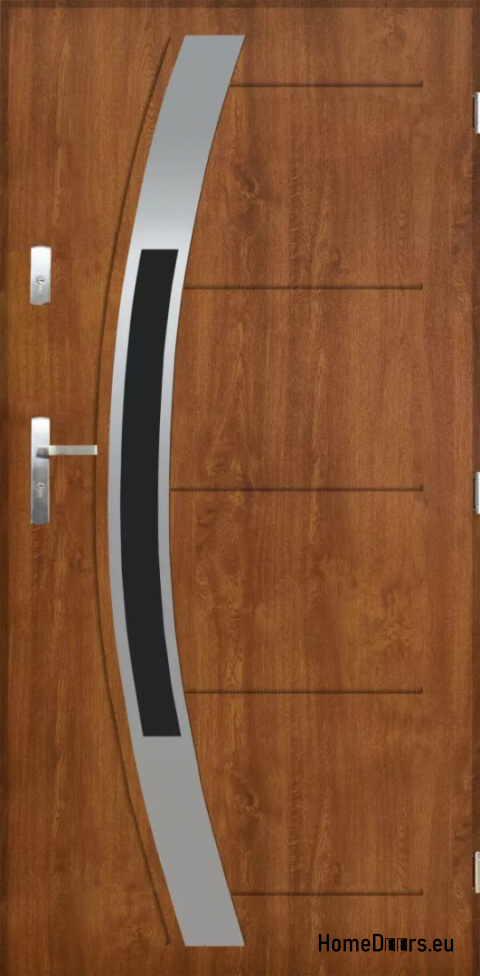

STEEL EXTERNAL ENTRANCE DOOR PANTOR FAGOT 01 90 GLAZED WITH NANO COATING

• Manufacturer: PANTOR
• Model:FAGOT 01
• Width: 90
• Glass:YES
• Purpose:HOUSE / APARTMENT

POLISH PRODUCT!

Characteristics:

• SYSTEM 55 STANDARD
• sash thickness 55mm
• gasket around the perimeter
• Frame Click door frame mounting system
• NanoAdvance surface coating technology

Available sizes:

• 90

The set includes:

• door leaf, door frame, threshold, handles, locks, inserts.

DOOR DIMENSIONS

• 90: Door dimension in the light of the passage 900 x 2000 [mm], door mounting dimension 990 x 2065 [mm].

KIT CONTENTS

• wing
• quick assembly frame
• in the color of the wing
• aluminium threshold
• 2 mortise locks
• Fittings
• gasket around the perimeter of the door

AMPLIFICATION

• trigeminal hinges
• 3 anti-theft pins

FILLING

• expanded polystyrene

COLORS

The offered door model is available in the following colors:

ANTHRACITE

GOLDEN NOBLE OAK

NOBLE WALNUT

ACCESSORIES INCLUDED

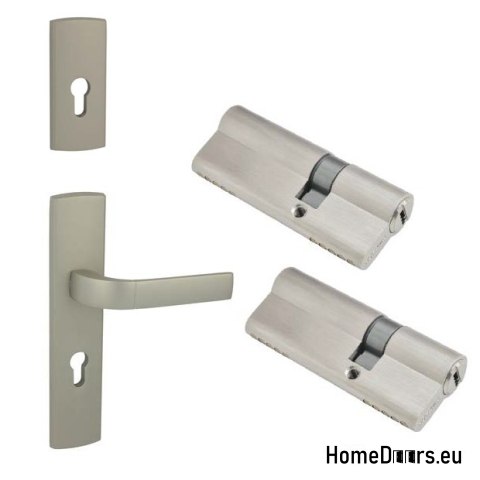

• Fittings for system 55: handle with long signboard, upper lock signboard, inserts  in the one-key system 30/50 mm (2 pcs.)

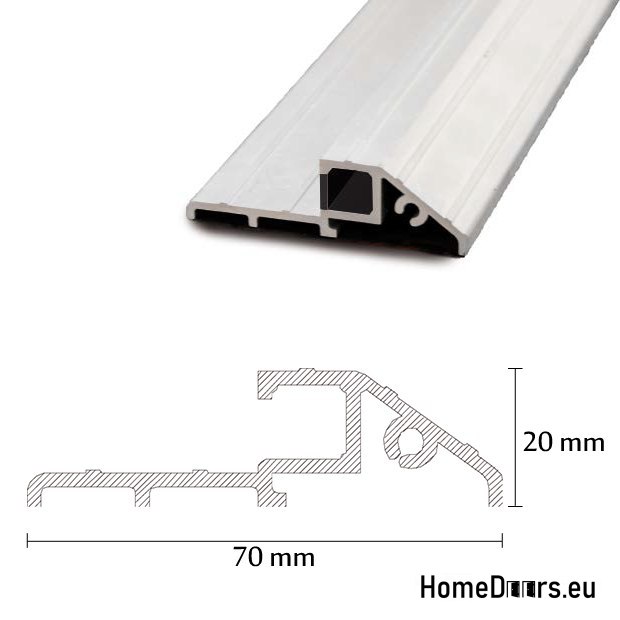

• Aluminium threshold with gasket for systems 55 and 72, length: 930 mm (can be shortened to any size), colour: aluminium
• Steel frame for system 55

STEEL FRAME WITH THRESHOLD

Dimensions of the frame in the light of passage A in mm:

• [90] 900 x 2000

Mounting dimension of frame B in mm:

• [90] 990 x 2065

Frame size C in mm:

• 90

Frame made of galvanized steel sheet, covered with an innovative coating. NANOADVANCE Equipped with the patented Frame Click system that allows much faster and simpler connection of the frame. Complete with threshold.

FRAME CLICK is a patented frame mounting system designed by Polish engineers. Thanks to the use of convenient latches, the installation of the frame is simpler and much faster than before. Thanks to innovative technology, one person can handle the installation of the frame!

DIRECTION OF DOOR OPENING

VIEW FROM THE INSIDE OF THE BUILDING / ROOM

• right door - if we see the hinges on the right side opening the door to each other
• left door - if we see the hinges on the left side opening the door on each other

• A - left door opening inwards
• B - right door opening inwards
• C - left door opening to the outside
• D - right door opening to the outside

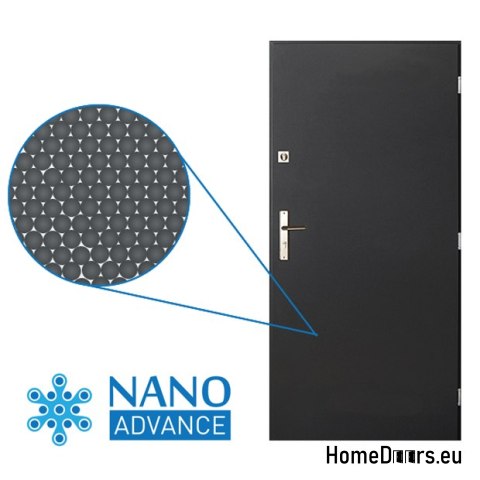

NANO ADVANCE TECHNOLOGY

Innovative technology at your fingertips.

Innovative technology consisting in coating the surface with nanoparticles of powder varnish, cured by polymerization. Thanks to this, the surface obtains a high quality finish and resistance to scratches and UV rays.

Nano Advance is a technology that is characterized by durability and high quality of finish.

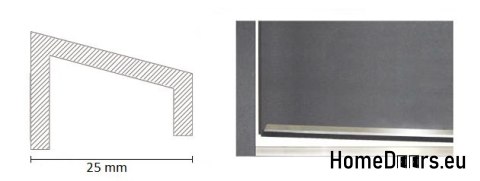

DRIP CAP

INNOVATIVE SOLUTION. If the door will open to the inside of the apartment, we encourage you to buy a drip cap.

• The universal drip cap allows you to fix the external doors so that they open to the inside of the building.
• Prevents dampness of the lower parts of the wing.
• Drip length: 890 mm (can be shortened to 790 mm).
• Drip color: aluminum.

AVAILABLE FOR OTHER AUCTIONS

We offer professional service throughout the Polish.

We guarantee solid packaging and safe transport.

We recommend that you check the goods in the presence of a courier.
