FLAT rebated door PLS STOLGEN with frame, handle and insert

Model: STOLGEN PLS-6, Width: 90 cm

Flat doors are a universal solution for both modern and classic interiors. When given the right color and finish, they are more or less extravagant décor of any apartment. Flat doors in natural veneers are an excellent decoration of any residential or public building.

Use:

  • interior exterior doors
  • interior doors

Technical data:

  • natural pine wood, not painted, for self-finishing, with fixed frame
  • frame made of glulamed pine
  • stabilization filling MDF board with epsoon 100 floor polystyrene
  • frame with filling covered on both sides with MDF with a thickness of 8 mm
  • the sash is covered with natural pine, ash or oak veneer
  • the side edges and the upper edge are veneered in a non-rebated version
  • leaf thickness 40 mm
  • available in rebated and non-rebated versions in sizes 60, 70, 80 and 90 cm

Standard equipment:

  • three trunnion hinges
  • lock for insert, key or toilet lock
  • fixed frame with dimensions: thickness 40 mm, width 90 mm
  • handle
  • insole

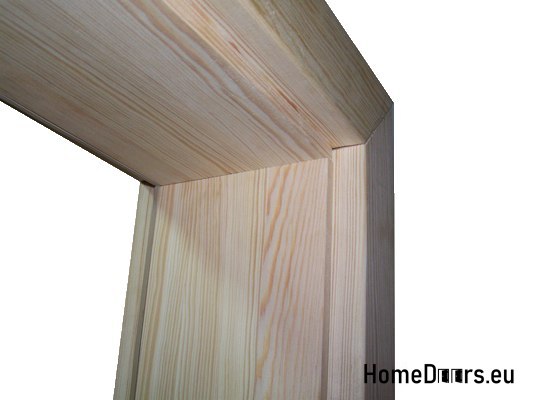

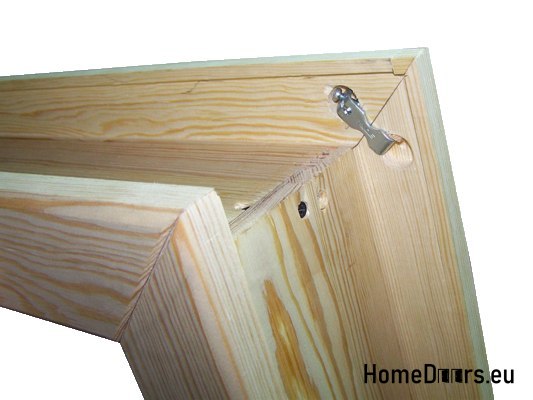

Fixed frame (included with doors):


Model designations of Stolgen PLS wings:


PlS Stolgen wing construction:

  1. frame made of glued pine wood
  2. ash, oak or pine sticker
  3. hard polystyrene foam
  4. pine, ash or oak veneer
  5. MDF board with a thickness of 8 mm



Types of PLS Stolgen wings:

  • A - rebated doors
  • B - non-rebated doors

Direction of door opening:

VIEW FROM THE INSIDE OF THE BUILDING / ROOM

  • right door - if we see the hinges on the right side opening the door to each other
  • left door - if we see the hinges on the left side opening the door on each other

Remark! In order to adjust the appropriate door to your individual needs, please SEND INFORMATION ABOUT THE SELECTED DIRECTION OF DOOR OPENING AFTER THE PURCHASE.

  • A - left door opening inwards
  • B - right door opening inwards
  • C - left door opening to the outside
  • D - right door opening to the outside

Colors:

For an additional fee, the door is painted in the following colors:

  1. mahogany
  2. nut
  3. light walnut,
  4. rosewood
  5. sapeli,
  6. Teak
  7. tobaco,
  8. honey
  9. cherry
  10. venge.

The amount of subsidies is given below.

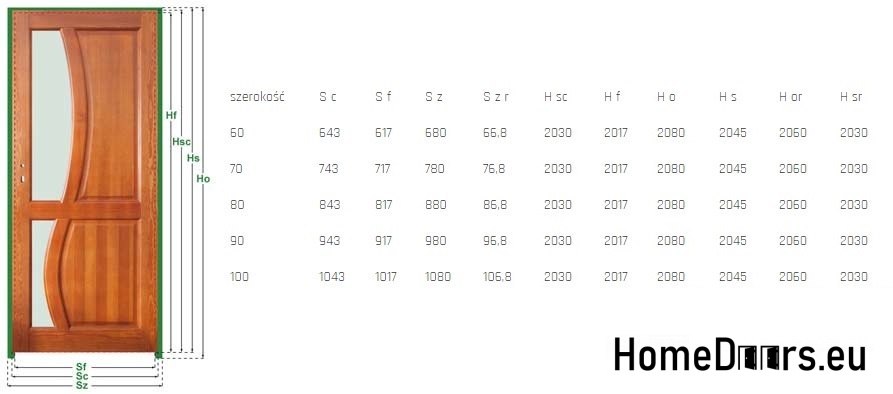

Table of dimensions:

Legend:

  • S c - total width of the sash
  • S f - width of the wing in the falc
  • S z - door width with frame
  • S z r - door width with adjustable frame
  • H sc - total height of the sash
  • H f - height of the wing in the falc
  • H o - total height of the frame
  • H s - height from the bottom of the sash to the top of the frame
  • H or - total height of adjustable frame
  • H sr - height from the bottom of the sash to the top of the adjustable frame

metric unit mm


Surcharge:

  • threshold - 45 PLN
  • non-rebated system flush with 3D retractable hinges - 450 PLN
  • drilling holes for ventilation sleeves - 20 PLN
  • ventilation undercut - 20 PLN
  • varnishing the sash with clear varnish - 300 PLN
  • varnishing the wing with varnish color - 330 PLN
  • varnishing of the wing RAL covering color - 350 PLN
  • varnishing of the frame adjustable with clear varnish - 180 PLN
  • painting adjustable frame color - 210 PLN
  • varnishing adjustable frame color RAL - 230 PLN
  • making doors unusual in terms of size - one unusualness - 80 PLN
  • making doors unusual in terms of size - two (and more) unusualness - 120 PLN
  • fixed frames for wall thickness - 25 PLN / 1 cm
  • 2-leaf doors with a set of bolts and fittings - 65 PLN
  • masking band - 40 PLN
  • quarter roll - 30 PLN
  • adjustable hinge - 65 PLN
  • magnetic lock - 100 PLN
  • ash veneer (sash + fixed frame) - 110 PLN
  • oak veneer (sash + fixed frame) - 170  PLN
  • ash veneer adjustable frame - 90 PLN

You will find subsidies at our other auctions.


Surcharges - adjustable door frames:

range (mm)   /   raw price

  • 90-110                460 PLN
  • 110-130              505 PLN
  • 130-150              545 PLN
  • 150-170              585 PLN
  • 170-190              620 PLN
  • 190-210              660 PLN
  • 210-230              700 PLN
  • 230-250              745 PLN
  • 250-270              780 PLN
  • 270-290              820 PLN
  • 290-310              860 PLN
  • 310-330              900 PLN

You will find subsidies at our other auctions.
