• Raw room door 70 with frame STOLGEN LS6

The Symbol : 7755775003
1609.00 -7% 1496.37
By the end of the promotion left :
opak Add to wishlist
Shipping within 30 days
Shipping price 0
Odbiór osobisty 0
The Availability Of Duża dostępność
Leave your phone

Wooden pine door with fixed frame STOLGEN CLASSIC LS-6, 70 cm (plus extra bed)

Inside-apartment wooden doors are doors made of natural selected pine wood. The thickness of the door leaf is 40 mm. Door panel made of pine wood.

Technical data:

  • NATURAL PINE WOOD, RAW, UNGLAZED, WITH FIXED FRAME
  • Door leaf thickness 40 mm
  • The door leaf is knotless, natural pine, ash or oak
  • Sash frame filled with milled or smooth panel
  • For an additional charge, the door surface finished with stains and varnishes with a visible wood structure (the exception is white covering color)
  • Glazing with glass available in the manufacturer's offer
  • Possibility of making a door with upper or side light
  • Possibility of making doors in a double-leaf version
  • Technical Approval AT-15-6912/06
  • Dimensions of the fixed frame: thickness 40 mm, width 90 mm.
  • Doors available with adjustable frames and applied to old metal frames (surcharge).
  • Door leafs adapted for metal frames without additional payment.
  • It is possible to make sashes and frames in unusual dimensions (surcharge).
  • Available glazing of raw doors (surcharge).
  • POLISH PRODUCT.

The amount of surcharges is given below.


Available sizes:

Doors are produced in rebated and non-rebated versions in sizes 60, 70, 80 and 90 cm , opened as right or left.

Standard equipment:

  • mortise lock with a spacing of 72/50 (insert, key, toilet lock) or savings lock for the handle itself
  • straight or Italian screw-in hinge (2 or 3 pieces)

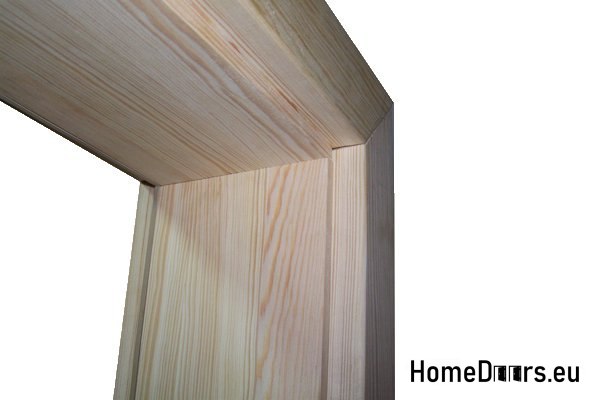

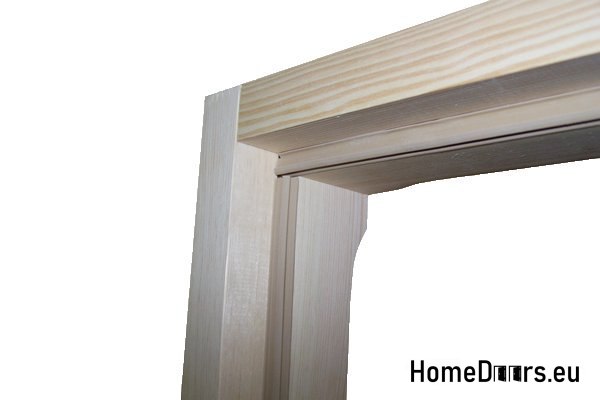

  • fixed frame with dimensions: thickness 40 mm, width 90 mm

Additional options:

For an additional fee, it is possible to varnish, glaze, modify the product or make an unusual door - details below.

Model designations of sashes STOLGEN pine - CLASSIC series:

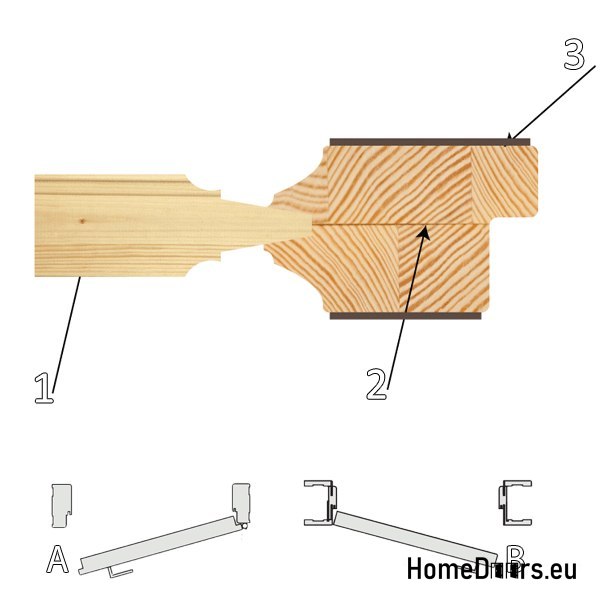

Construction of the wing Stolgen pine:

  1. pine coffer
  2. pine plywood
  3. pine cover

Types of wings Stolgen pine:

  • A - rebated doors
  • B - non-rebated doors

Direction of door opening:

VIEW FROM THE INSIDE OF THE BUILDING / ROOM

  • right door - if we see the hinges on the right side opening the door to each other
  • left door - if we see the hinges on the left side opening the door on each other

Remark! In order to adjust the appropriate door to your individual needs, please SEND INFORMATION ABOUT THE SELECTED DIRECTION OF DOOR OPENING AFTER THE PURCHASE.

  • A - left door opening inwards
  • B - right door opening inwards
  • C - left door opening to the outside
  • D - right door opening to the outside

Colors of doors and glass:

Doors FOR AN ADDITIONAL SURCHARGE are painted in the following colors:

A. IN PINE VENEER:

  1. mahogany
  2. nut
  3. light walnut,
  4. rosewood
  5. sapeli,
  6. Teak
  7. tobaco,
  8. honey
  9. cherry
  10. venge.

B. IN PINE VENEER:

  1. oak
  2. Teak
  3. dark calvados,
  4. brunat,
  5. white
  6. Milled
  7. Lacquer.

There is a possibility of glazing - FOR AN ADDITIONAL FEE.

C. GLAZING:

  1. white bark,
  2. brown bark,
  3. white rain,
  4. milky digested,
  5. safe lacomat,
  6. sandblasted flutes,
  7. blue decormat,
  8. sandblasted bambo

You will find subsidies at our other auctions.

Table of dimensions:

Legend:

  • S c - total width of the sash
  • S f - width of the wing in the falc
  • S z - door width with frame
  • S z r - door width with adjustable frame
  • H sc - total height of the sash
  • H f - height of the wing in the falc
  • H o - total height of the frame
  • H s - height from the bottom of the sash to the top of the frame
  • H or - total height of adjustable frame
  • H sr - height from the bottom of the sash to the top of the adjustable frame

metric unit mm


Surcharge:

  • Wooden threshold - 80 PLN
  • non-rebated system flush with 3D retractable hinges - 600 PLN
  • drilling holes for ventilation sleeves - 40 PLN
  • ventilation undercut - 40 PLN
  • adaptation of the wings to the sliding system non-rebated (without fittings) - 200 PLN
  • glazing of wooden doors raw glass milk glass - 100 PLN
  • glazing of wooden doors raw glass remaining - 160 PLN
  • making doors unusual in terms of size - one unusualness - 100 PLN
  • execution of doors unusual in terms of size - two (and more) unusualness - 150 PLN
  • fixed frames for wall thickness - 35 PLN / 1 cm
  • wall-mounted sliding system with grille - 350 PLN
  • masking band - 80 PLN/set
  • quarter roll - 60 PLN/set
  • adjustable hinge - 65 PLN
  • magnetic lock - 120 PLN
  • doors in a varnished version with frames - at separate auctions

Surcharges - adjustable door frames:

scope (mm)   /  offer number in allegro (copy the offer number and paste in the allegro search engine)

  • 90-110       8857765737
  • 110-130     8857823802
  • 130-150     8857830136
  • 150-170     8857831906
  • 170-190     8857834439
  • 190-210     8857842490
  • 210-230     8857843675
  • 230-250     8857858129
  • 250-270     8857866021
  • 270-290     8857860851
  • 290-310     8857869580
  • 310-330     8857863646
Stan Nowy
Marka STOLGEN
Rodzaj wykończenia drewno surowe
