STEEL ENTRANCE DOOR WITH GLASS IN 23, TO SIZE. POSSIBILITY OF SHORTENING THE DOOR TO THE HEIGHT. 190 CM WITH FRAME

PLEASE SPECIFY AFTER THE PURCHASE WHAT THE EXTERNAL HEIGHT WITH THE FRAME SHOULD BE.

  • Sash width: for doors 80 dimension in wall light 890mm*2070mm, for doors 90 dimension in wall light 990mm*2070mm
  • Sash thickness : 52 mm
  • Construction:
  • door leaf with a thickness of 52 mm
  • polyurethane foam filling
  • high quality galvanized steel sheet
  • metal frame with gasket
  • glulam frame
  • threshold made of stainless steel and with gasket
  • additional lock
  • basic lock
  • hinge with anti-theft pin
  • Equipment:
  • powder coated sash
  • 3 trigeminal reinforced hinges
  • 2 independent mandrel locks
  • 2 gaskets around the perimeter of the frame and door leaf,
  • powder coated frame with gasket
  • The doors are equipped with all the necessary accessories, i.e.: handles, locks, inserts, threshold, frames.
  • Product Polish

SASH CONSTRUCTION

  1. Styrofoam with a thickness of 52 mm.
  2. High quality steel sheet, galvanized, powder coated
  3. Metal frame with gasket.
  4. Glulam frame
  5. Threshold made of stainless steel and with gasket
  6. Additional lock
  7. Basic lock
  8. Hinge with anti-theft pin

Sound insulation index Rw= 28dB

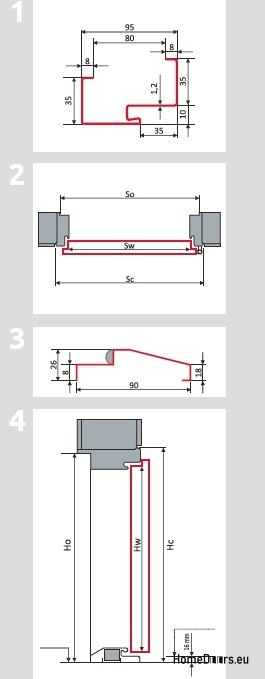

DIMENSIONS:

For doors 80:
  1. Dimensions of the hole in the brick wall for embedding the frame at the finished floor: Height x width - 2070x890
  2. Sash height in the przylga Hw - 2015mm
  3. Sash width in sw - 815mm
  4. Total height of the frame HC - 2075mm
  5. Total width of frames SC - 895mm
  6. Height of the hole in the wall Ho - 2055mm
  7. Width of the opening in the wall So - 865mm
For doors 90:
  1. Dimensions of the hole in the brick wall for embedding the frame at the finished floor: Height x width - 2070x990
  2. Sash height in the przylga Hw - 2015mm
  3. Sash width in sw - 915mm
  4. Total height of the frame HC - 2075mm
  5. Total width of frames SC - 995mm
  6. Height of the hole in the wall Ho - 2055mm
  7. Width of the opening in the wall So - 965mm




DIRECTION OF DOOR OPENING:

A - Left door opening inwards

B - Right door opening inwards

C-  Left door opening to the outside

D - Right door opening to the outside

Right door - if we see the hinges on the right side, opening the door to each other.

Left door - if we see the hinges on the left side, opening the door to each other.



We offer professional service throughout the Polish.

We guarantee solid packaging and safe transport.

We recommend that you check the goods in the presence of a courier.

Sposób otwierania Na zewnątrz
Stan Nowy
Kod produktu Stalowe
Marka SZTUKMAR
