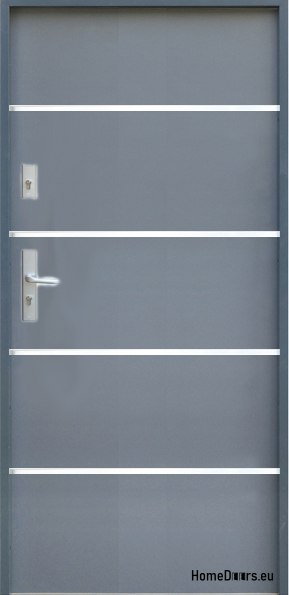

• EXTERNAL DOOR OPUS FLAT A25 80/90 anthracite white

The Symbol : 6768715360
Kolor
Szerokość drzwi
Kierunek otwierania
2200.00 -7% 2046.00
By the end of the promotion left :
opak Add to wishlist
Shipping within 30 days
Shipping price 0
Odbiór osobisty 0
The Availability Of Duża dostępność
Leave your phone

  EXTERIOR DOORS, ENTRANCE, STEEL, FLAT OPUS A25, DOUBLE-SIDED APPLICATION

  • Sash width: 90 dimension in wall light 990mm*2070mm
  • Sash thickness : 52 mm
  • Construction:
  • polyurethane foam with a thickness of 52 mm
  • high-quality steel sheet,
  • Galvanised
  • metal frame with gasket
  • glulam frame
  • threshold made of stainless steel and with gasket
  • additional lock
  • basic lock
  • hinge with anti-theft pin
  • Equipment:
  • wing
  • 3 trigeminal reinforced hinges
  • 2 independent mandrel locks
  • 2 gaskets around the perimeter of the frame and door leaf,
  • powder coated frame with gasket
  • The doors are equipped with all the necessary accessories , i.e.: handles, locks, inserts, threshold, frames.
  • Product Polish

DIRECTION OF DOOR OPENING:

- Left door opening inwards

B -  Right door opening inwards

C-  Left door opening to the outside

D -  Right door opening to the outside

Right door - if we see the hinges on the right side, opening the door to each other.

Left door - if we see the hinges on the left side, opening the door to each other.

GALLERY (AVAILABLE COLORS):

ANTHRACITE                                                                                                                                                          WHITE


SASH CONSTRUCTION

  1. Polyurethane foam with a thickness of 52 mm.
  2. High quality steel sheet, galvanized
  3. Metal frame with gasket.
  4. Glulam frame
  5. Threshold made of stainless steel and with gasket
  6. Additional lock
  7. Basic lock
  8. Hinge with anti-theft pin

Sound insulation index Rw= 28dB


DIMENSIONS:

  1. FRAME OPUS "10" with gasket
  2. Door width
  3. OPUS threshold with gasket
  4. Floor level and maximum floor level (16mm)

Opus "90" :

  • Dimensions of the hole in the brick wall for embedding the frame at the finished floor: Height x width - 2070x990
  • Sash height in the przylga Hw - 2015mm
  • Sash width in sw - 915mm
  • Total height of the frame HC - 2075mm
  • Total width of frames SC - 995mm
  • Height of the hole in the wall Ho - 2055mm
  • Width of the opening in the wall So - 965mm



We offer professional service throughout the Polish.

We guarantee solid packaging and safe transport.

We recommend that you check the goods in the presence of a courier.

Sposób otwierania Do wewnątrz
Stan Nowy
Kod produktu Stalowe
Marka SZTUKMAR
