Entrance door to the house 72mm WENUS 01 80 90

• Manufacturer: PANTOR
• Model: WENUS 01
• Glass:YES
• Purpose:HOUSE / APARTMENT

POLISH PRODUCT.

Characteristics:

• SYSTEM 72 PLATINUM
• door leaf thickness 72 mm
• 2 gaskets
• NANOADVANCE surface coating technology

The set includes:

• door leaf, door frame, threshold, handles, locks, inserts.

DOOR DIMENSIONS

• 80: Door dimension in the light of the passage 800 x 2000 [mm], door mounting dimension 890 x 2065 [mm].
• 90: Door dimension in the light of the passage 900 x 2000 [mm], door mounting dimension 990 x 2065 [mm].

KIT CONTENTS

• wing
• frame in the color of the sash folded in the traditional way
• aluminium threshold
• 2 mortise locks
• fittings for an additional fee (p. 11)
• 2 gaskets

AMPLIFICATION

• 3D adjustable bipartite hinges with casings
• 3 anti-theft pins

FILLING

• expanded polystyrene

COMMENTS

• AVAILABLE FRAME COLORS: A02

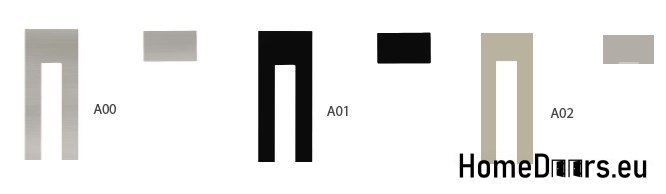

COLORS OF GLAZING FRAMES AND APPLICATIONS

Thanks to the innovative NANOADVANCE technology in selected door models, it is possible to choose the color of the application and the glazing frame.

• A00 | outer sash with inox application and/or frame
• A01 | outer sash with application and/or frame BLACK
• A02 | outer sash with application and/or SATYNA frame

ACCESSORIES INCLUDED

• Fittings for system 72: handle with long signboard, upper lock signboard, inserts 45/50 mm (2 pcs.)
• Aluminium threshold with gasket for systems 55 and 72, length: 930 mm (can be shortened to any size), colour: aluminium
• Door frame in the color of the sash folded in the traditional way

DIRECTION OF DOOR OPENING

VIEW FROM THE INSIDE OF THE BUILDING / ROOM

• right door - if we see the hinges on the right side opening the door to each other
• left door - if we see the hinges on the left side opening the door on each other

• A - left door opening inwards
• B - right door opening inwards
• C - left door opening to the outside
• D - right door opening to the outside

NANO ADVANCE TECHNOLOGY

Innovative technology at your fingertips.

Innovative technology consisting in coating the surface with nanoparticles of powder varnish, cured by polymerization. Thanks to this, the surface obtains a high quality finish and resistance to scratches and UV rays.

Nano Advance is a technology that is characterized by durability and high quality of finish.

DRIP CAP

INNOVATIVE SOLUTION. If the door will open to the inside of the apartment, we encourage you to buy a drip cap.

• The universal drip cap allows you to fix the external doors so that they open to the inside of the building.
• Prevents dampness of the lower parts of the wing.
• Drip length: 890 mm (can be shortened to 790 mm).
• Drip color: aluminum.

We guarantee solid packaging and safe transport.

We recommend that you check the goods in the presence of a courier.
