• Wooden door with frame colourful full PS1 80

The Symbol : 7386280460
1669.00 -7% 1552.17
By the end of the promotion left :
opak Add to wishlist
Shipping within 30 days
Shipping price 0
Odbiór osobisty 0
The Availability Of Duża dostępność
Leave your phone

Premium STOLGEN interior doors with fixed frame

Model: STOLGEN PREMIUM PASADENA PS-1, Width: 80 cm, Rebated

Wooden doors inside the premises are doors made of natural selected wood, finished with a varnish coating in a rich color palette. The thickness of the door leaf is 40 mm. Door panel made of MDF covered with natural pine, ash or oak veneer.

In the price - without additional charges - THE DOOR AND FIXED FRAME ARE VARNISHED AND GLAZED.

Technical data:

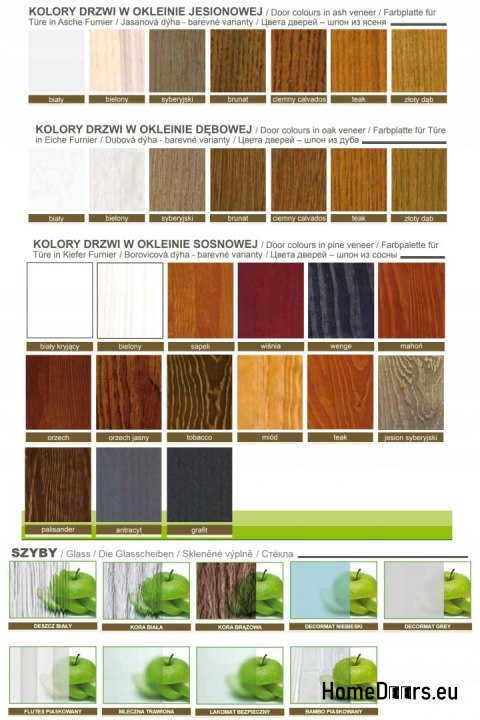

  • natural pine wood, varnished according to the palette of colours shown below,
  • glazed (does not apply to full doors),
  • with a fixed frame,
  • the door leaf is knotless, natural pine, ash or oak
  • sash frame filled with milled or smooth panel
  • door surface finished with stains and varnishes with a visible wood structure (the exception is white covering color)
  • as standard, the doors are trained with milk glass
  • possible glazing with glass available in the manufacturer's offer
  • possibility of making a door with upper or side light
  • possibility of making doors in a double-leaf version
  • possibility of making sashes and frames in unusual dimensions (surcharge)
  • available with adjustable frames and applied to old metal frames (surcharge)
  • door leaf thickness 40 mm
  • Technical Approval AT-15-6912/06
  • available in rebated and non-rebated versions in sizes 60, 70, 80 and 90 cm

Standard equipment:

  • mortise lock with a spacing of 72/50 (insert, key, toilet lock) or savings lock for the handle itself
  • straight or Italian screw-in hinge (2 or 3 pieces)
  • adjustable hinge for an additional charge

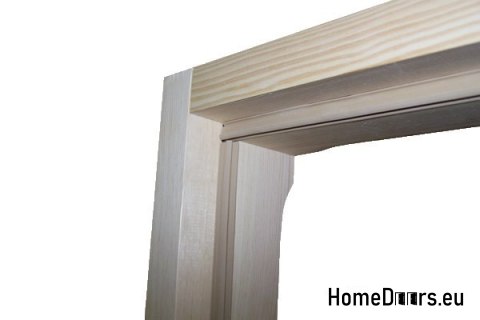

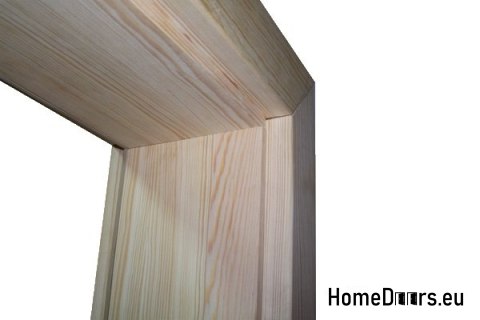

  • fixed frame with dimensions: thickness 40 mm, width 90 mm

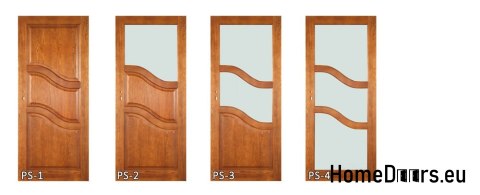

Model designations Stolgen Premium wings:

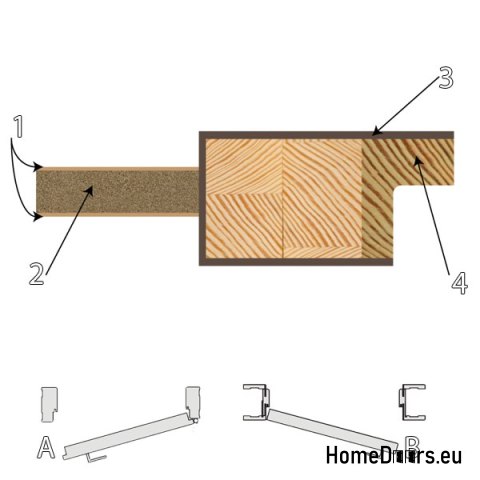

Stolgen Premium wing construction:

  1. VENEER, pine, ash, oak
  2. PANEL MDF
  3. CREW
  4. PINE, ash or oak STICKER



Types of Stolgen Premium wings:

  • A - rebated doors
  • B - non-rebated doors

Direction of door opening:

VIEW FROM THE INSIDE OF THE BUILDING / ROOM

  • right door - if we see the hinges on the right side opening the door to each other
  • left door - if we see the hinges on the left side opening the door on each other

Remark! In order to adjust the appropriate door to your individual needs, please SEND INFORMATION ABOUT THE SELECTED DIRECTION OF DOOR OPENING AFTER THE PURCHASE.

  • A - left door opening inwards
  • B - right door opening inwards
  • C - left door opening to the outside
  • D - right door opening to the outside

Table of dimensions:

Legend:

  • S c - total width of the sash
  • S f - width of the wing in the falc
  • S z - door width with frame
  • S z r - door width with adjustable frame
  • H sc - total height of the sash
  • H f - height of the wing in the falc
  • H o - total height of the frame
  • H s - height from the bottom of the sash to the top of the frame
  • H or - total height of adjustable frame
  • H sr - height from the bottom of the sash to the top of the adjustable frame

metric unit mm


Surcharge:

  • Wooden threshold - 80 PLN
  • non-rebated system flush with 3D retractable hinges - 600 PLN
  • drilling holes for ventilation sleeves - 40 PLN
  • ventilation undercut - 40 PLN
  • adaptation of the wings to the sliding system non-rebated (without fittings) - 200 PLN
  • making doors unusual in terms of size - one unusualness - 100 PLN
  • execution of doors unusual in terms of size - two (and more) unusualness - 150 PLN
  • fixed frames for wall thickness - 35 PLN / 1 cm
  • wall-mounted sliding system with grille - 350 PLN
  • masking band - 160 PLN/set
  • quarter roll - 100 PLN/set
  • adjustable hinge - 65 PLN
  • magnetic lock - 120 PLN
  • doors in oak or ash veneer with fixed frame – 600 PLN
  • adjustable frame in ash or oak veneer – 300 PLN

Surcharges - adjustable door frames:

scope (mm)   /  offer number in allegro (copy the offer number and paste in the allegro search engine)

  • 90-110            11593673297
  • 110-130          11593703464
  • 130-150          11593707174
  • 150-170          11593709340
  • 170-190          11593712562
  • 190-210          11593715129
  • 210-230          11593716617
  • 230-250          11593718568
  • 250-270          11593728257
  • 270-290          11593730560
  • 290-310          11593732324
  • 310-330          11593734258
Stan Nowy
Marka STOLGEN
Rodzaj wykończenia lakierowane
